Aimtec Expands its 1x1 inch DC/DC Converter Offering to 40W!

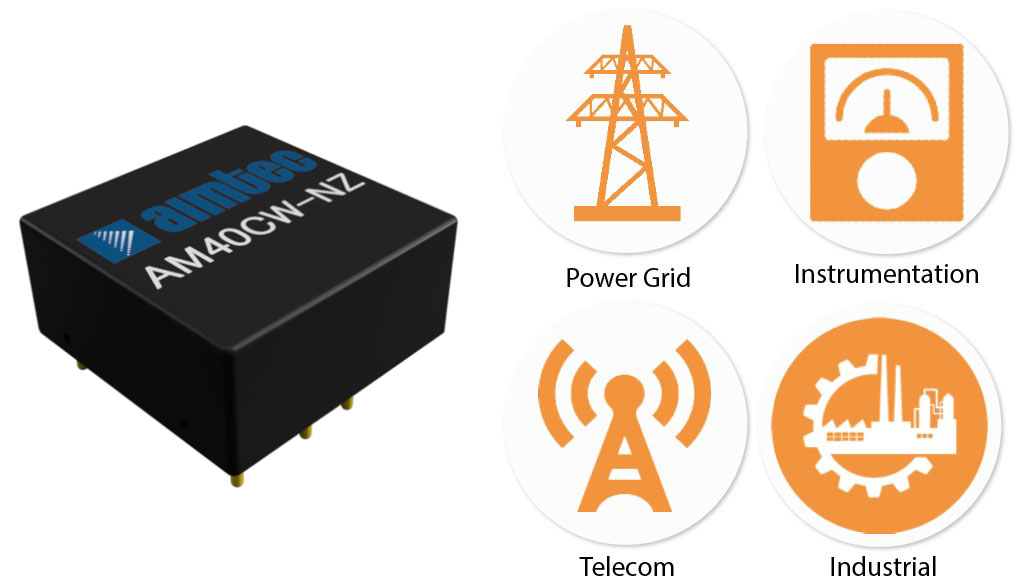

The AM40CW-NZ is a 1x1 inch 40W DC/DC converter that offers a regulated output contributing to a more stable and reliable output performance. It features a wide 4:1 input voltage range from 9-36 or 18-75VDC and outputs between 3.3 and 28VDC.


This series offers great operating temperatures, from -40°C to 105°C with efficiencies up to 91.5%. Furthermore, an isolation of 1500VDC, a high MTBF of 1,000,000h, continuous output short circuit protection (OSCP), over-current protection (OCP), over-voltage protection (OVP), over-temperature protection (OTP) and under voltage protection (UVP) come standard with the series.

The AM40CW-NZ is suitable for grid power, instrumentation, industrial controls, communication, and civil applications.
For information regarding this new series, visit or have a look at our data sheet here: AM40CW-NZ
